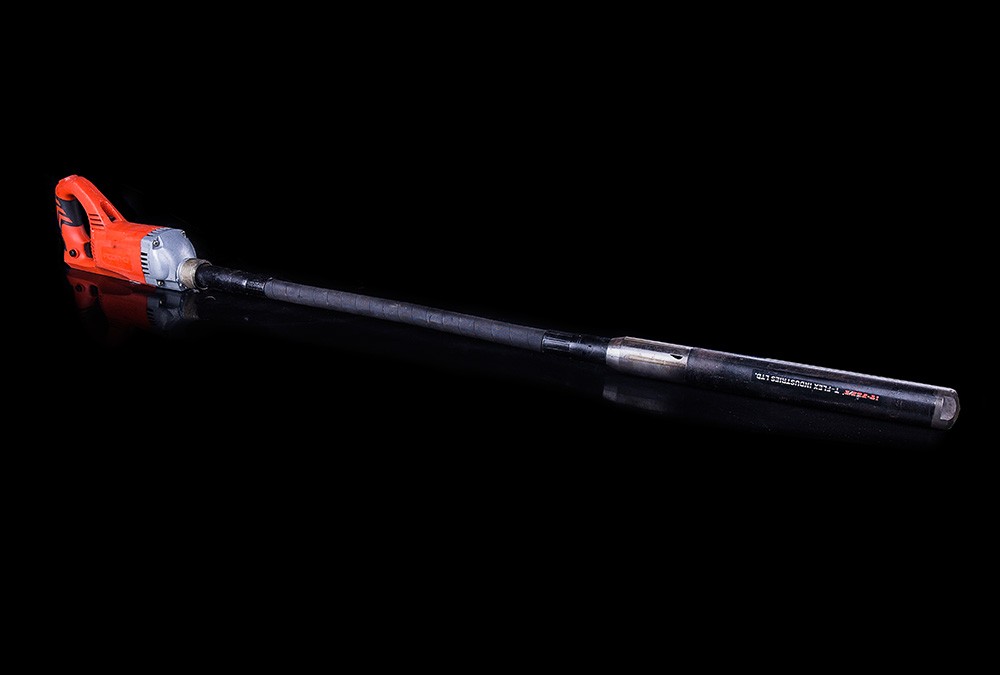

High Speed Handy Concrete Vibrator
1. Convenient and comfortable to operate due to the design of the motor and light weight.
2. Double-insulation for the motor enhance the safe operation greatly
3. Working with the single phase power supply,very suitable for individual use
4. Always easy and convenience to handle and operate.
Introduction
Parameters
JYG ZSN系列手提棒 Handy Pendulum Concrete Vibrator |
||||||
|
序号 NO. |
编号 CODE NO. |
直径 head diameter（mm） |
长度 head length（mm） |
转速 r.p.m |
软管外径 casing outer diameter（mm） |
软轴直径 flex-shaft diameter（mm） |
| 1 | ZSN25 | 28 | 380 | 4000 | 25 | 8 |
| 2 | ZSN32 | 32 | 470 | 4000 | 30 | 10 |
| 3 | ZSN35 | 35 | 380 | 4000 | 30 | 10 |
| 4 | ZSN38 | 38 | 470 | 4000 | 30 | 10 |
| 5 | ZSN45 | 45 | 470 | 4000 | 30 | 10 |
