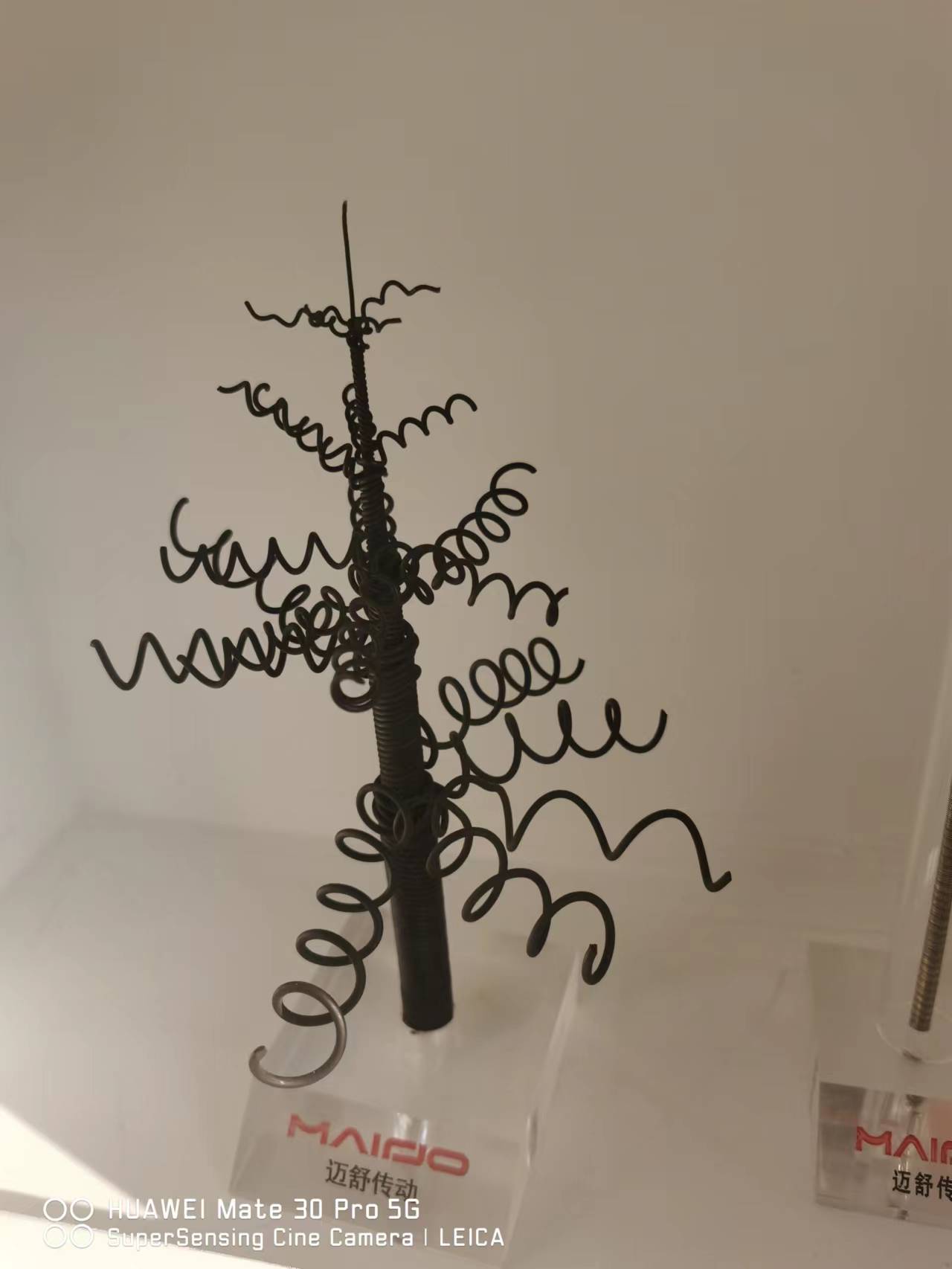

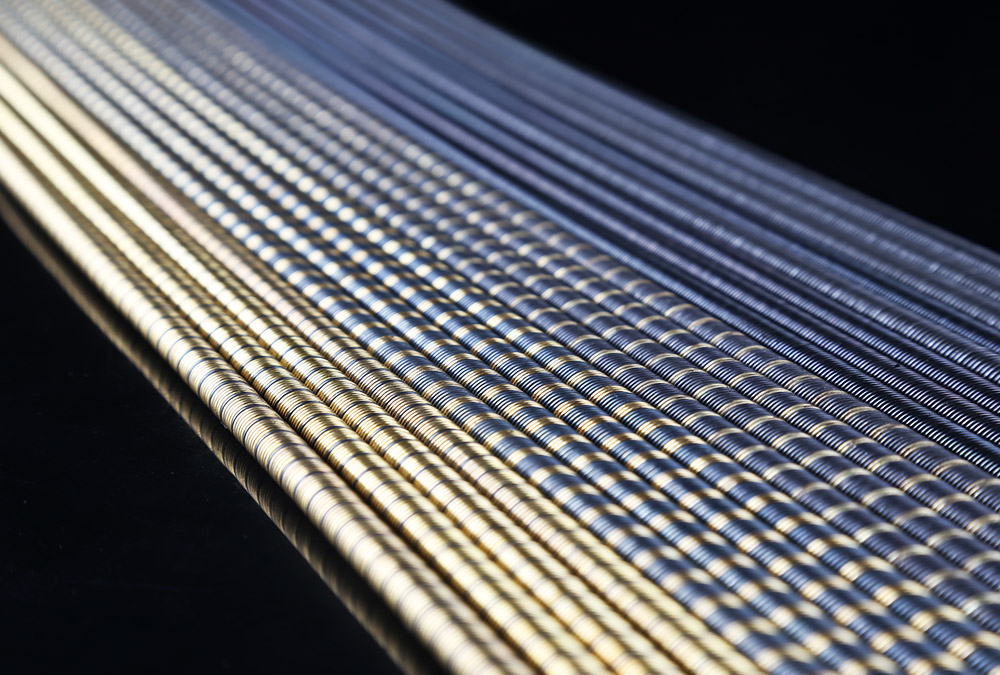

Electric Tool Used Flexible Shaft
Material：70# carbon steel, 65Mn high carbon spring wires, 304/316 stainless steel wire
Rotation direction: left-handed and right-handed

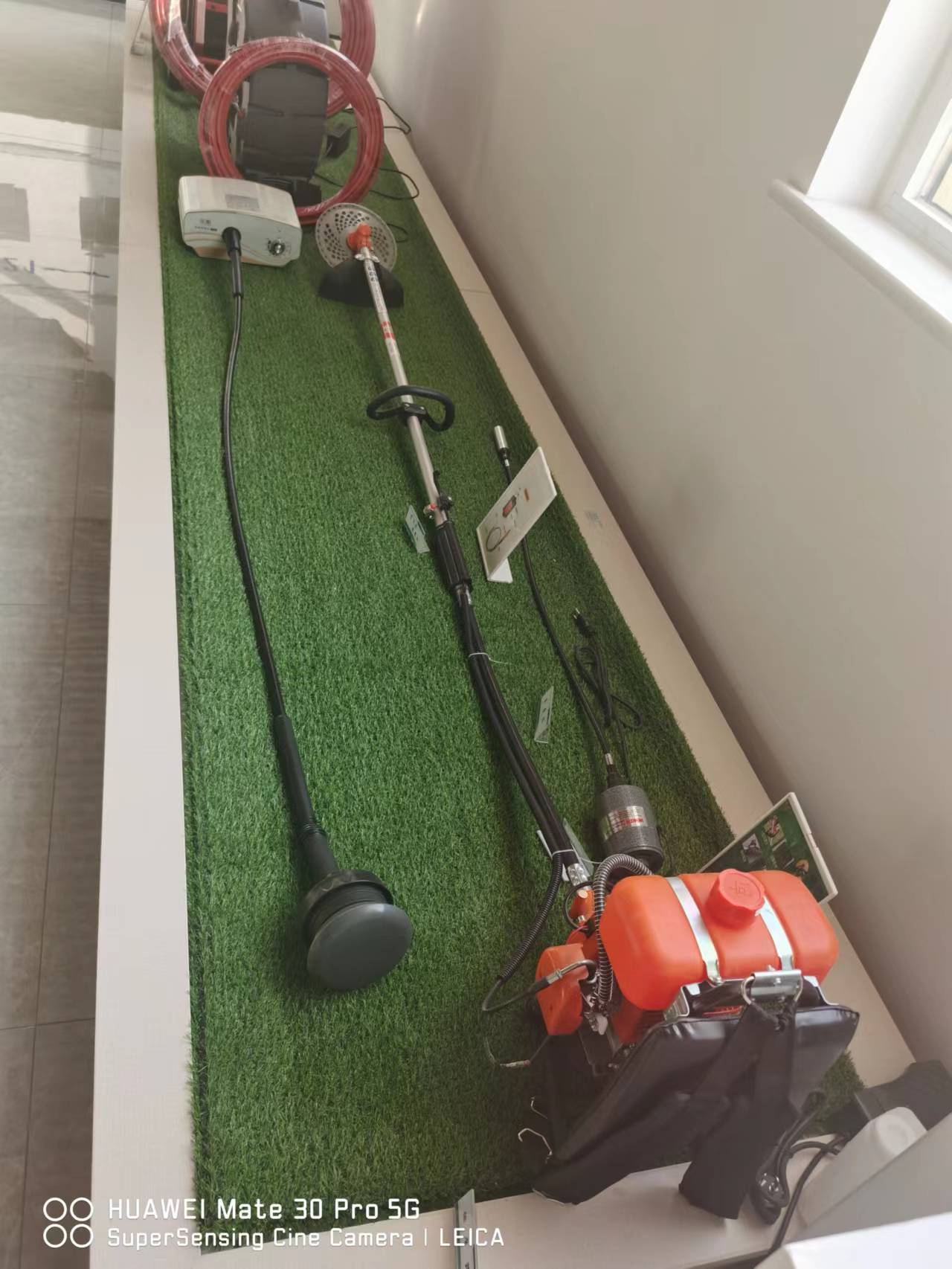

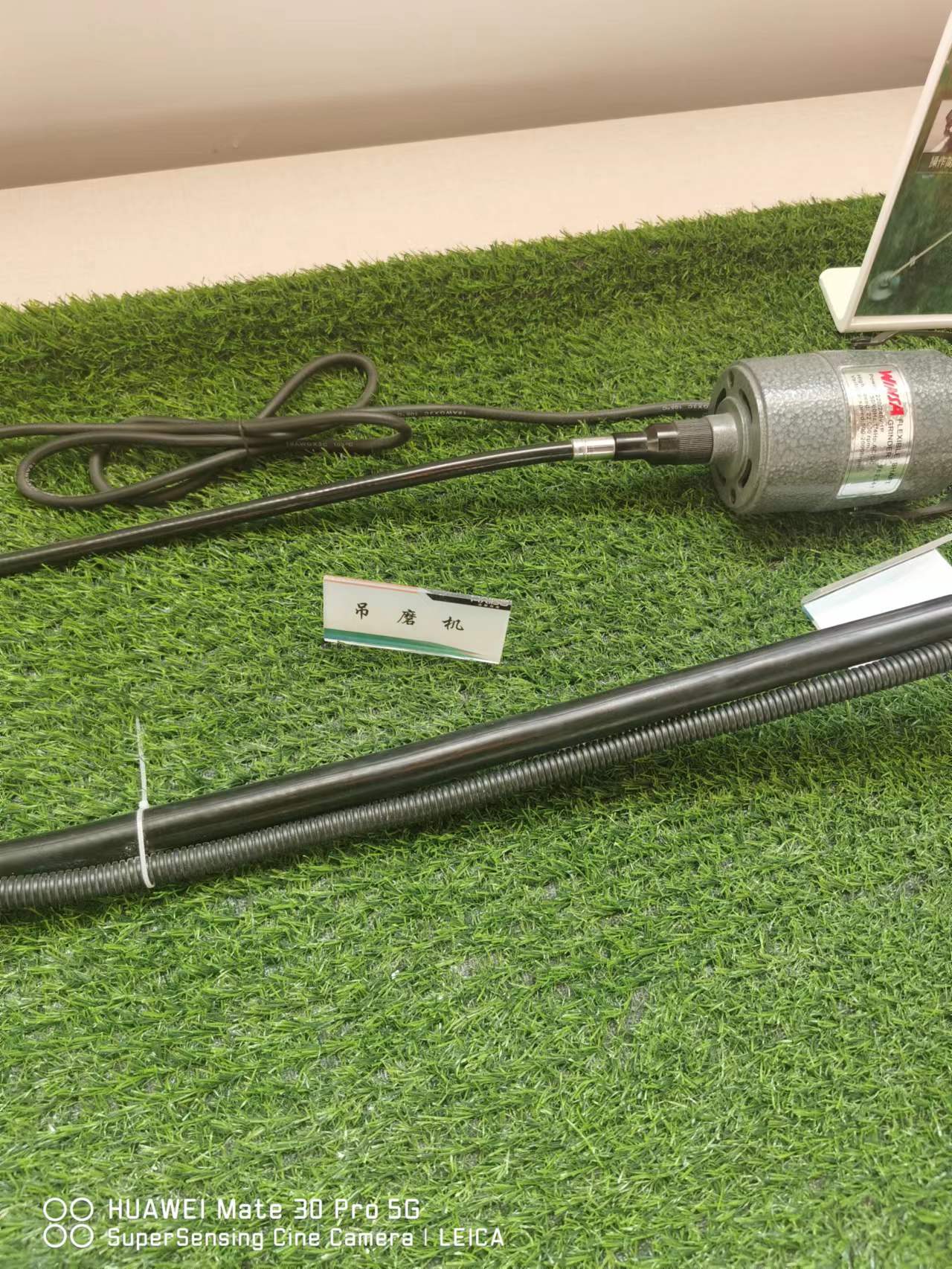

Application：hanging mill, massager, dental equipment, corrugated pipe making machine, grinding machine etc.
characteristics ：smooth, flexible, high elacticity ,wear-resisting
Dimater: 1.5-8mm
Introduction
Material：70# carbon steel, 65Mn high carbon spring wires, 304/316 stainless steel wire
Rotation direction: left-handed and right-handed
Application：hanging mill, massager, dental equipment, corrugated pipe making machine, grinding machine etc.
characteristics ：smooth, flexible, high elacticity ,wear-resisting
Dimater: 1.5-8mm
Parameters
| Diameter（ mm ） |
Tolerance（ mm ） |
layers |
Torque Value（ N · m ） ( tested smaple 500mm ) | Weight (kg/ 100m ) | |
| 2.0 |
+0.02 -0.02 |
3/5 | 0.8 | 1.8 | |
| 2.5 | 3/5 | 1.0 | 2.8 | ||
| 3.2 | 3/5 | 1.3 | 4.6 | ||
| 3.8 | 3/5 | 1.5 | 6.5 | ||
| 5.0 |
+0.00 -0.05 |
3/4/5 | 1.8 | 11.3 | |
| 6.0 | 3/4/5 | 2.4 | 16.2 | ||
| 6.5 | 4/5/7 | 2.9 | 18.7 | ||
| 8.0 |
|
5/7 | 7.5 | 28.8 | |
| 10 | 4/5/6 | 22.5 | 45.5 | ||
| 12 | 5/7 | 39.0 | 66.5 | ||
| 13 | 5/7 | 50.5 | 77.5 | ||
| 16 | 5/7 | 115.0 | 114 | ||
| 18 | 5/7 | 160 | 145 | ||
| Other sizes not listed in the table could be made according to customer need. | |||||
