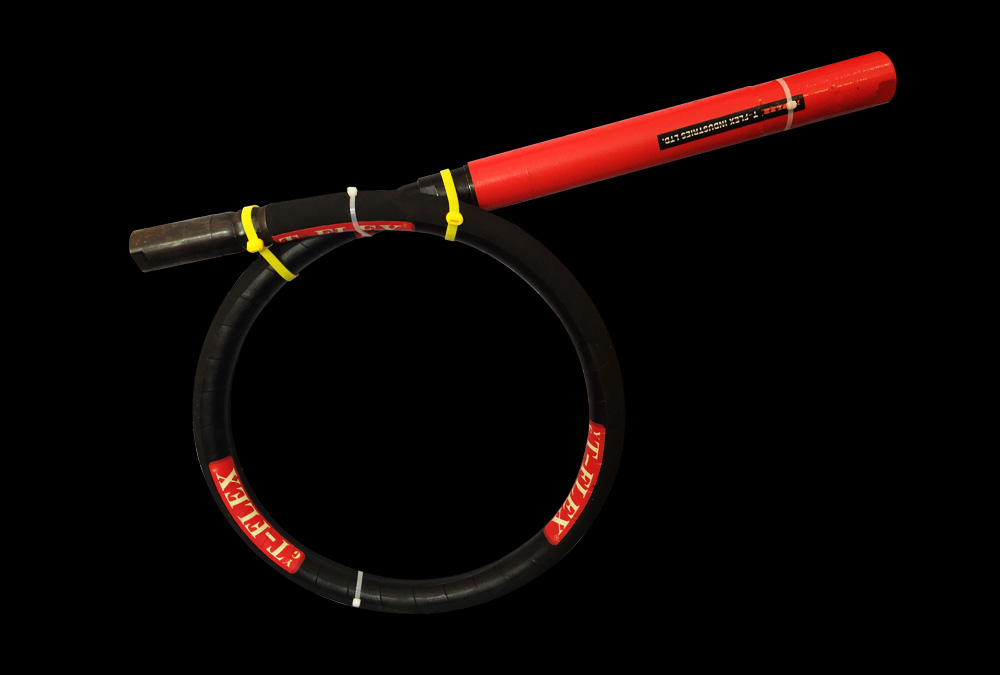

Russian Type Concrete Vibrator Shaft
1.JYG series Concrete vibrator is widely used in construction of road, bridge, tunnel, building infrastructures, etc.It can be driven by mini gasoline or electric engine.It is also considered as a necessary ideal tool in site operation with concreter.

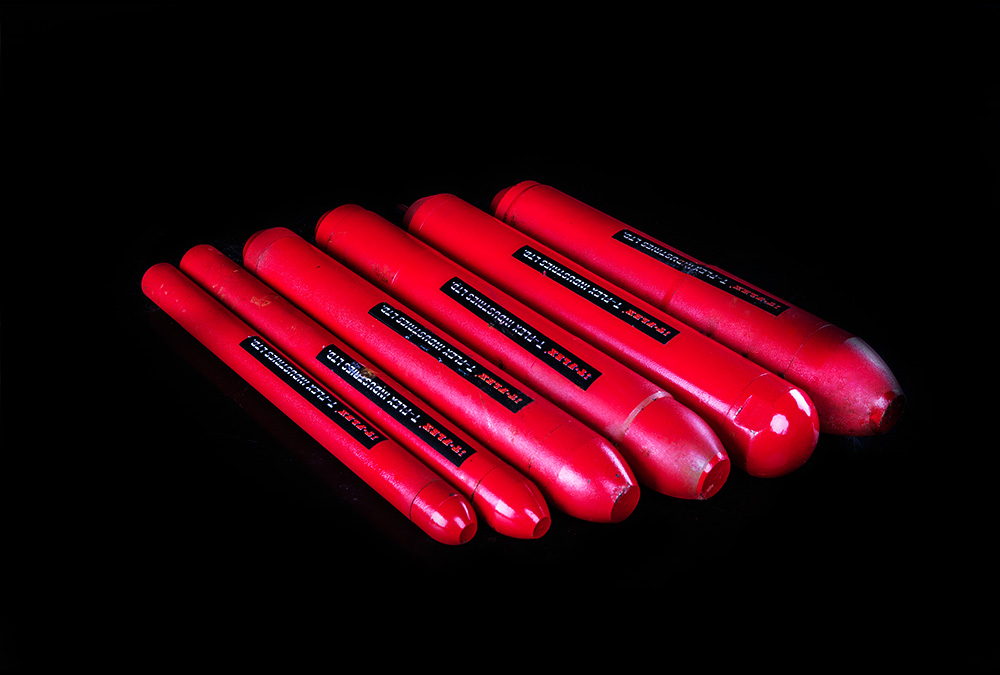

2.The poker size we can make 28mm/32mm/38mm/45mm/60mm/70mm etc.,Length of hose could be customized as per your needs(usually 3.0mtr,4.5mtr,6mtr)
3.Full inspection of products to ensure better quality and stable quality.
Introduction
1.JYG series Concrete vibrator is widely used in construction of road, bridge, tunnel, building infrastructures, etc.It can be driven by mini gasoline or electric engine.It is also considered as a necessary ideal tool in site operation with concreter.
2.The poker size we can make 28mm/32mm/38mm/45mm/60mm/70mm etc.,Length of hose could be customized as per your needs(usually 3.0mtr,4.5mtr,6mtr)
3.Full inspection of products to ensure better quality and stable quality.
Parameters
| 俄式振动棒 Russian Type Concrete Vibrator | ||||||
|
序号 NO. |
编号 CODE NO. |
直径 head diameter（mm） |
长度 head length（mm） |
转速 r.p.m |
软管外径casing outer diameter（mm） |
软轴直径 flex-shaft diameter（mm） |
| 1 | R28 | 28 | 380 | 2850 | 26 | 10 |
| 2 | R38 | 38 | 430 | 2850 | 36 | 13 |
| 3 | R51 | 51 | 400 | 2850 | 36 | 13 |
| 4 | R76 | 76 | 430 | 2850 | 36 | 13 |
