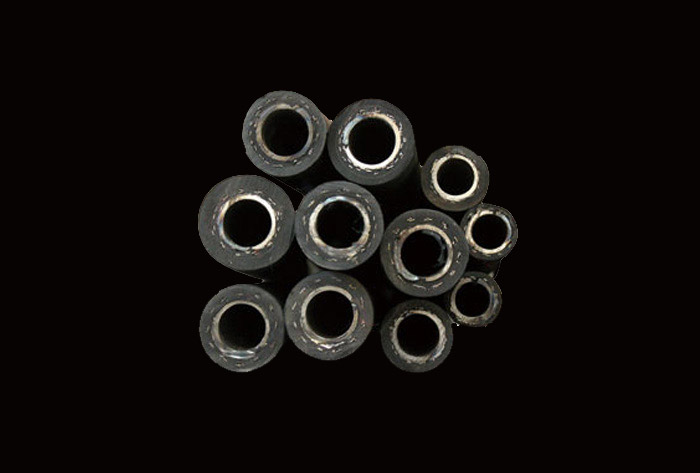

Rubber Hose for Vibrator
This kind of rubber hose can be used in different tools, such as concrete vibrator, flexble shaft water pump,shoulder packed brush cutter etc.
Introduction
This kind of rubber hose can be used in different tools, such as concrete vibrator, flexble shaft water pump,shoulder packed brush cutter etc.
Parameters
| 外径 Outer Diameter （mm) | 16 | 20 | 22 | 24 | 30 | 32 | 36 | 42 |
| 内径 Inner Diameter （mm) | 9 | 10 | 10 | 13 | 16 | 18 | 20 | 25 |
| 外胶拉力强度Outer Tensile Strength at Break(N/cm2) | >1000 | >1000 | >1000 | >1000 | >1000 | >1000 | >1000 | >1000 |
| 内胶附着力Inner Adhesive Force (N/cm2) | 50-60 | 50-60 | 50-60 | 60-65 | 60-65 | 60-65 | 60-65 | 60-65 |
| 带钢材质Strip Steel Material | 40Mn or 65Mn | |||||||
| 带钢硬度Strip Steel Hardness(HRC) | 20-30 | 20-30 | 20-30 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| 表层橡胶硬度Rubber Hardness (SHA) | 75-80 | |||||||
| 钢编层数Steel Wire Braid | 1 or 2 layers (96pcs or 120pcs wires per layer) | |||||||
| 最小弯曲半径Minimum Bending Radius (mm) | According to customer's need | |||||||
