Compatible with concrete vibrator motors, petrol or disel engine;
Quick action coupling system;

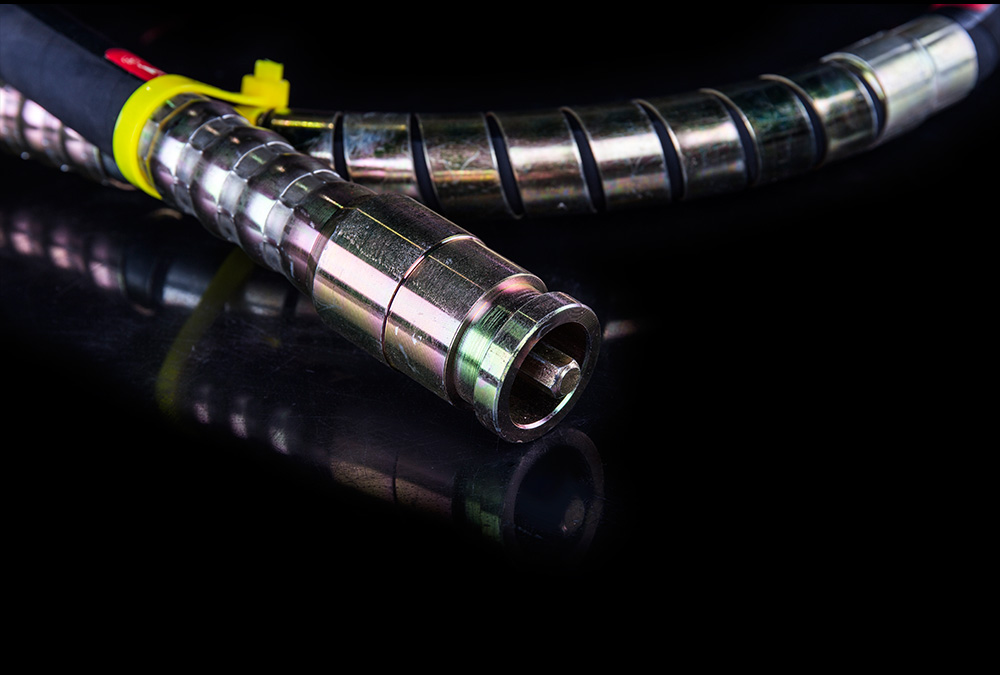

Steel braided and rubber coated flexible hose with hardened steel liner and spiral protector;
Heavy duty flexible shaft;
Full inspection of products to ensure better quality and stable quality.
Vibrator heads range in diameter from 28mm to 70mm and are factory assembled;
Shaft length available: 3m-12m
JYG CJ系列简易振动棒 Pendulum Concrete Vibrator |
JYG C系列弹簧振动棒Pendulum Counter Spring System Vibrator |
||||||||||||||
序号No | 编号Code No. | 直径Head Dia.(mm) | 长度Head Lenght (mm) | 转速R.P.M | 频率Freq.(VPM) | 振幅Vibration Amplitude (mm) | 软管外径Casing Outer Dia. (mm) | 软轴直径Flex-shaft Dia. (mm) | 马氏简易棒型号DYNAPAC TYPE |
日式简易棒型号JAPANESE TYPE |
韩式简易棒型号KOREAN TYPE | 土耳其式简易棒型号TURKISH TYPE | 印度式简易棒型号INDIAN TYPE |
马氏弹簧棒型号DYNAPAC TYPE |
日式弹簧棒型号JAPANESE TYPE |
1 | CJ28 | 28 | 450 |
2850
|
10000~ 12000 |
1.2 | 25 | 8 | CJ28D | CJ28J | CJ28K | CJ28T | CJ28IN | C28D | C28J |
2 | CJ32 | 32 | 470 | 1.4 | 30 | 10 | CJ32D | CJ32J | CJ32K | CJ32T | CJ32IN | C32D | C32J | ||
3 | CJ38 | 38 | 470 | 1.6 | 30 | 10 | CJ38D | CJ38J | CJ38K | CJ38T | CJ38IN | C38D | C38J | ||
4 | CJ45 | 45 | 470 | 2.0 | 30 | 10 | CJ45D | CJ45J | CJ45K | CJ45T | CJ45IN | C45D | C45J | ||
5 | CJ60 | 60 | 486 | 2.4 | 32 | 13 | CJ60D | CJ60J | CJ60K | CJ60T | CJ60IN | C60D | C60J | ||
6 | CJ70 | 70 | 495 | 2.6 | 36 | 13 | CJ70D | CJ70J | CJ70K | CJ70T | CJ70IN |
