• Australia Type Concrete Vibrator Shaft

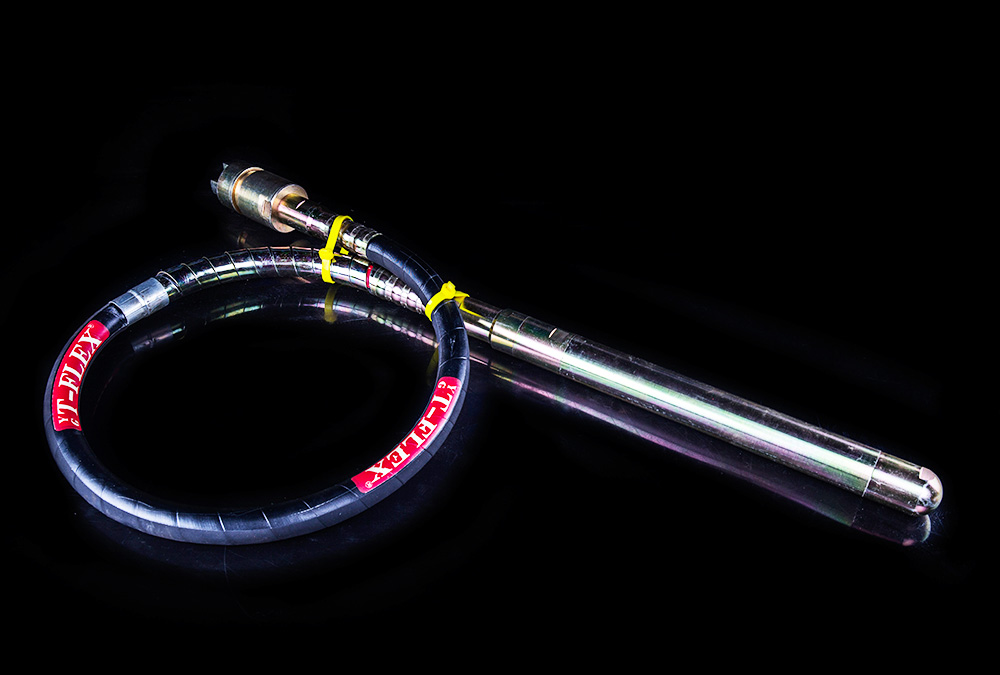

Australia Type Concrete Vibrator Shaft

  1.JYG series Concrete vibrator is widely used in construction of road, bridge, tunnel, building infrastructures, etc.It can be driven by mini gasoline or electric engine.It is also considered as a necessary ideal tool in site operation with concreter.
2.The poker size we can make 28mm/32mm/38mm/45mm/60mm/70mm etc.,Length of hose could be customized as per your needs(usually 3.0mtr,4.5mtr,6mtr)
3.Full inspection of products to ensure better quality and stable quality.
4.This kind of concrete vibrator is suitable for Australis,Britain,Italy,Mexico,Singapore,Chile,South Africa,Brazil,Jordan and other countries.
Inquiry

Introduction

   1.JYG series Concrete vibrator is widely used in construction of road, bridge, tunnel, building infrastructures, etc.It can be driven by mini gasoline or electric engine.It is also considered as a necessary ideal tool in site operation with concreter.
2.The poker size we can make 28mm/32mm/38mm/45mm/60mm/70mm etc.,Length of hose could be customized as per your needs(usually 3.0mtr,4.5mtr,6mtr)
3.Full inspection of products to ensure better quality and stable quality.
4.This kind of concrete vibrator is suitable for Australis,Britain,Italy,Mexico,Singapore,Chile,South Africa,Brazil,Jordan and other countries.

Parameters

JYG CJ系列简易振动棒 Pendulum Concrete Vibrator

JYG C系列弹簧振动棒Pendulum Counter Spring System Vibrator
序号No 编号Code No. 直径Head Dia.(mm) 长度Head Lenght (mm) 转速R.P.M 频率Freq.(VPM) 振幅Vibration Amplitude (mm) 软管外径Casing Outer Dia. (mm) 软轴直径Flex-shaft Dia. (mm) 马氏简易棒型号DYNAPAC TYPE

日式简易棒型号JAPANESE TYPE

韩式简易棒型号KOREAN TYPE 土耳其式简易棒型号TURKISH TYPE 印度式简易棒型号INDIAN TYPE

马氏弹簧棒型号DYNAPAC TYPE

日式弹簧棒型号JAPANESE TYPE

1  CJ28  28  450

   2850


  10000~

12000

 1.2  25  8  CJ28D  CJ28J  CJ28K  CJ28T  CJ28IN  C28D  C28J
2  CJ32  32  470  1.4  30  10  CJ32D  CJ32J  CJ32K  CJ32T  CJ32IN  C32D  C32J
3  CJ38  38  470  1.6  30  10  CJ38D  CJ38J  CJ38K  CJ38T  CJ38IN  C38D  C38J
4  CJ45  45  470  2.0  30  10  CJ45D  CJ45J  CJ45K  CJ45T  CJ45IN  C45D  C45J
5  CJ60  60  486  2.4  32  13  CJ60D  CJ60J  CJ60K  CJ60T  CJ60IN  C60D  C60J
6  CJ70  70  495  2.6  36  13  CJ70D  CJ70J  CJ70K  CJ70T  CJ70IN
